Battery Tester

Neware battery tester
Neware BTS9000

Accuracy 0.02%, 4 auto-switch output ranges, 400us pulse width, 1000Hz data record frequency, characterized above and even more advanced features, Neware BTS9000 is born to be the most advanced battery testing system, it is the best choice for you to find the future battery material.

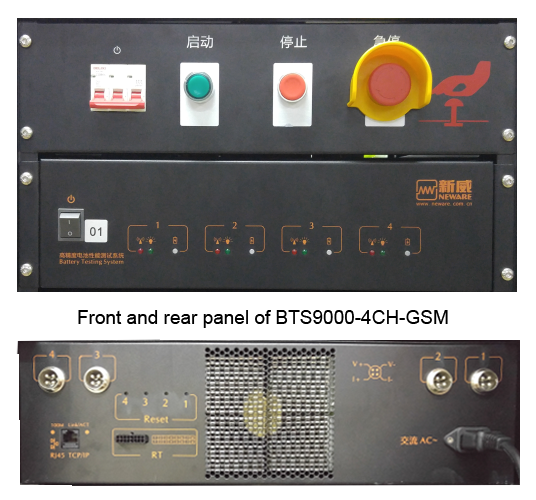

BTS9000 5V5A-4CH-GSM

BTS9000-5V5A-4CH-GSM is the most advanced model of all BTS9000 testers. It carries all the cutting-edge feature of BTS9000: 4 automatic-switch output ranges, 0.02% accuracy, 1000Hz data record frequency, OTA(on the air) upgrade supported, high frequency pulse(minimum pulse width 400us), offline working mode, etc.
All the 4 channels of BTS9000-5V5A-4CH-GSM can perform high frequency pulse test at the same time.

MAIN FEATURES

  • 4 auto-switch output ranges
  • 0.02% accuracy for each range
  • 1000Hz data record
  • 400us min pulse width
  • IEC standard DCIR test
  • OTA upgrade supported

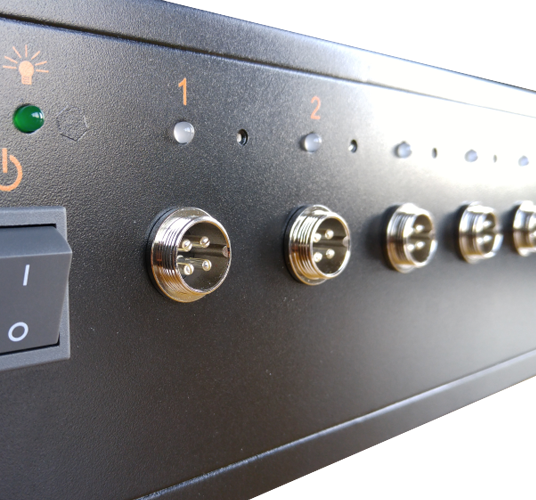

BTS9000 5V5A-8CH

Comparing with BTS9000-5V5A-4CH-GSM, there’s only one channel of BTS9000-5V5A-8CH can perform high frequency pulse test at the same time.

If you need highly accurate current output range to tell the subtle difference of the battery material, but don’t need many pulse tests, then  BTS9000-5V5A-8CH is the better choice.

  • good as 5V5A-4CH-GSM, main features are all the same
  • 8 channels in one cabinet, one channel can perform pulse test
  • more channels, more cost-effective
  • CVD(constant voltage discharge) supported

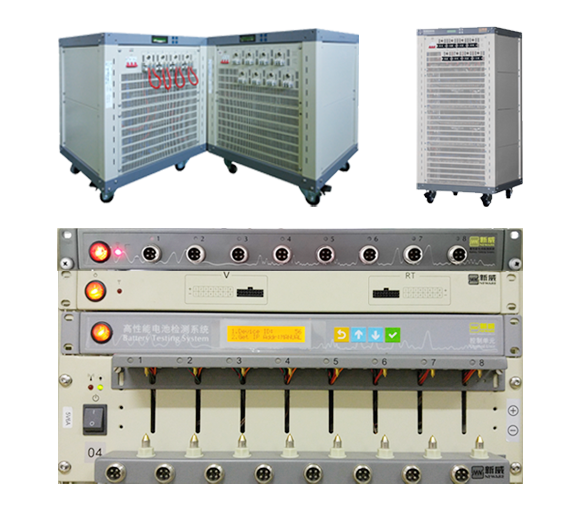

BTS4000 5V SERIES FOR CELLS

Neware BTS4000 5V series battery tester ranges from 1mA up to 3000A, you can use it to test coin cells, pouch cells, cylinder(18650, 26650, 27710, etc) and even paralleled battery modules and packs. For all the BTS4000 testers lower or equal to 30W(5V6A or 10V3A), the accuracy is 0.05%FS. And for all the BTS4000 testers higher than 30W, the accuracy is 0.1%FS.

BTS4000-5v1mA
BTS4000-5V5mA
BTS4000-5V10mA(dual range)
BTS4000-5V50mA(dual range)
BTS4000-5V100mA
BTS4000-5V500mA
BTS4000-5V1A
BTS4000-5V6A(dual range)
BTS4000-5V12A(dual range)
BTS4000-5V20A
BTS4000-5V100A
BTS4000-5V1000A

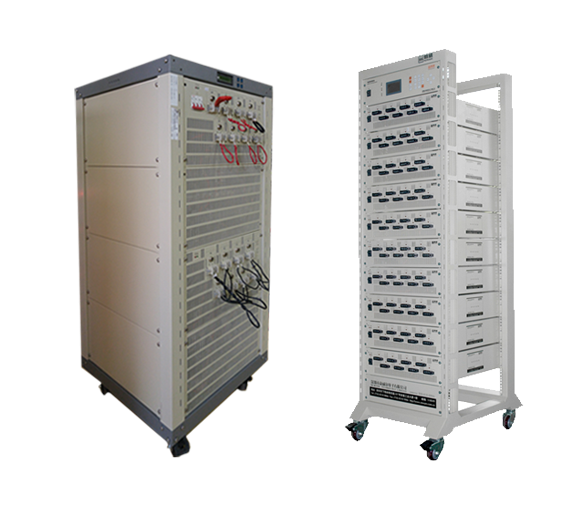

BTS4000 10V-50V SERIES FOR MODULES

BTS4000 10V-50V battery testers for battery modules and packs. Almost all the models can be customized with multi output ranges, if you need that, please tell your sales representative.

BTS4000-10v100mA(0.05%FS)
BTS4000-10V3A(0.05%FS)
BTS4000-10V10A
BTS4000-10V50A
BTS4000-15V3A
BTS4000-20V20A(8 channels)
BTS4000-20V200A(2 channels)
BTS4000-30V30A
BTS4000-30V100A
BTS4000-50V10A
BTS4000-50V60A(2 channels)
BTS4000-50V100A(1 channel)

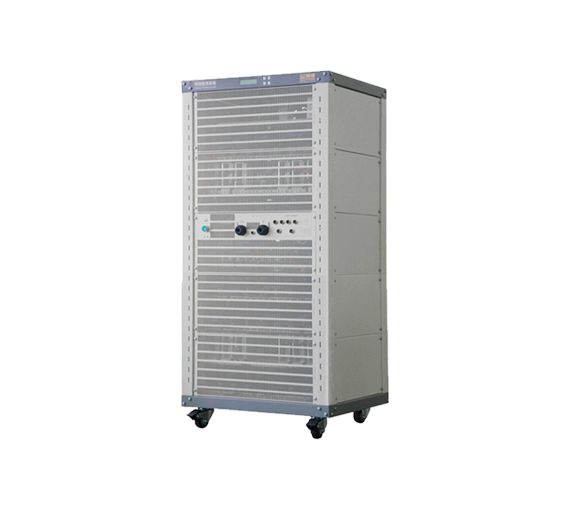

BTS4000 HIGH POWER SERIES FOR PACKS

60V-150V battery testers for testing battery packs.
In fact, if you need 100V/200V BTS4000 such as 100V10A/20A/30A/50 or 200V/10A/20A etc., we can also customize them for you. But for testers higher than 100V100A, IGBT series would be a better choice.

BTS4000-60v10A(8 channels)
BTS4000-60V50A(2 channels)
BTS4000-60V100A(1 channel)
BTS4000-60V100A(2 channels)
BTS4000-60V200A(1 channel)
BTS4000-100V10A(4 channels)
BTS4000-100V30A(2 channels)
BTS4000-100V60A(1 channel)
BTS4000-120V50A(2 channels)
BTS4000-150V50A(1 channel)
