red-y smart pressure controller
คุณสมบัติสินค้า:
The electronic red-y smart pressure controller combine the reliable technology of our digital mass flow controllers with electronic pressure control. The devices automatically control a predefined process pressure and at the same time measure and/or limit the flow rate. On-the-fly switching between pressure control and flow control offers maximum flexibility.
หมวดหมู่ : เครื่องวัดและควบคุมอัตราการไหล , red-y smart pressure controller ,
Share
1 Device – 3 Functions
The pressure controller combines three functions:
- Pressure controller
- Pressure controller with flow measurement/limitation
- Flow controller with pressure measurement
The following instrument versions are available:
- Integrated pressure control
Accuracy:± 0.5 % of full scale - Integrated back pressure control
Accuracy:± 0.5 % of full scale - Pressure control with external pressure transmitters
- Pressure controller with gas mixer function
Analog & Digital: 2 in 1
The pressure controllers make use of the latest CMOS technology and have a digital (Modbus RTU) and analog interface as standard.Profibus, Profinet RT and EtherCAT interfaces are available.
A wide range of cables and power supply units for fast integration of the red-y smart pressure controllers is available:
Software get red-y
Efficient device management with the free get red-y software:
- View flow rate & temperature
- Change set points
- Select measured gas
- Visualization of measured data
- Adjusting control parameter
Optional modules get red-y software:
- Datalogging
- Gasmixing
See all available cables and power supply accessories for easy PC connection.
Options
Built-in display
Display includes: Flow rate, totalizer, unit of measure & set point control
Multigas
One controller or controller can be used for up to 10 different gases or gas mixtures
Profibus
The instruments are available with Profibus interface: DP-V0 & DP-V1 protocols
Industrial Ethernet
Two industrial ethernet protocols Profinet RT and EtherCAT are available

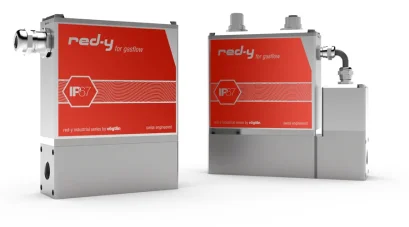

IP67/ATEX Versions
red-y industrial pressure controllers are available as IP67/ATEX versions
Tech Specs
Measuring & control ranges Pressure
| Pressure control | Absolute, differential or gauge pressure Standard measuring ranges from 30 mbar up to 10 bar (graded) Turndown ratio: 1 : 100 |
| Back pressure control | Absolute, differential or gauge pressure Standard measuring ranges from 30 mbar up to 10 bar (graded) Dynamic range depending on the application |
Measuring ranges flow
| Air/Full scale freely selectable | Body size ¼” from 0 … 25 mln/min to 0 … 60 ln/min Body size ½” from 0 … 60 ln/min to 0 … 450 ln/min |
Turndown ratio & accuracy Flow
| “Standard” | Accuracy: ± 1.0% of full scale* Turndown ratio: 1 : 50 |
| “Hi-Performance” (up to 150 ln/min) | Accuracy: ± 0.3% of full scale + ± 0.5% of reading* Turndown ratio: 1 : 100 |
| Pressure controller with external transmitter, special measuring ranges (e.g. 0-20 Pa) & customer-specific solutions on request |
Performance Data
| Media (real gas calibration) | Air*, O2*, N2, He, Ar, CO2, H2, CH4, C3H8 (other gases and gas mixtures on request) *O2 & N2 are calibrated with air |
| Response time Flow Measurement | ± 80ms depending on device configuration & according to SEMI standard E17-1011, 5-100% of range under optimized conditions |
| Response time Pressure Measurement | 150ms |
| Response time Pressure Control | Depending on the measuring section |
| Repeatability | ± 0.2% of full scale (according to SEMI standard E56-0309) |
| Longterm stability | < 1% of measured value / year |
| Power supply | 24 Vdc (18 – 30 Vdc), 15 Vdc on request |
| Current consumption Standard | Meter: max. 100 mA; Controller: max. 250 mA (with valve type 8 max. 490mA) |
| Current consumption Profinet RT / EtherCAT | Meter: max. 125 mA; Controller: max. 340 mA (with valve type 8 max. 560mA) |
| Temperature (environment/gas) | 0 – 50°C |
| Body Materials | Anodized aluminium, optional stainless steel electropolished 1.4305 or 1.4404 |
| Seals | FKM, EPDM, optional FFKM |
| Pressure | Vacuum up to 10 bar g |
| Pressure sensitivity | <0.2% / bar of reading (typical N2) |
| Temperature sensitivity | 0.025% FS measuring range type / °C |
| Warm-up time | <1 sec. for full accuracy |
Integration
| Output signals digital | RS-485; Modbus RTU (Slave); Lab View-VIs available Option: ProfiBus DP-V0, DP-V1 / Profinet RT / EtherCAT |
| Output signals analog | 0..20 mA, 4..20 mA, 0..5 V, 1..5 V, 0..10 V, 2..10 V |
| Analog setpoints | Realizable with AD-converter (on request) |
| Process connection | G¼” (BSPP* female) up to 60 ln/min, G½” (BSPP* female) up to 450 ln/min *British Standard Pipe Parallel |
| Inlet section | None required |
| Electrical connection | Sub D plug, 9 pole |
| Mounting orientation | Any position (consult manufacturer above 5 bar or vertical mounting) |
Safety
| Test pressure | 16 bara |
| Leak rate | < 1 x 10-6 mbar l/s He |
| Ingress protection class | IP50 or IP67 |
| EMC | EN 61326-1 |
Accessories
Connection cables, power supplies
A wide range of cables and power supply units for fast integration of the red-y smart pressure controllers is available:
- Cables for communication with PC (USB)
- Cables for analog communication
- Power supply (24 Vdc)
Compression fittings with 50μ filter/ Stainless steel 1.4404 / 316L
| Type/Connection | Seals in FKM | Seals in EPDM |
| G1/4″ to 6mm | Part-N° 328-1011 | Part-N° 328-1031 |
| G1/4″ to 1/4″ | Part-N° 328-1012 | Part-N° 328-1032 |
| G1/4″ to 12mm | Part-N° 328-1013 | Part-N° 328-1033 |
| G1/4″ to 1/2″ | Part-N° 328-1014 | Part-N° 328-1034 |
| G1/2″ to 12mm | Part-N° 328-1006 | Part-N° 328-1026 |
| G1/2″ to 1/2″ | Part-N° 328-1007 | Part-N° 328-1027 |
Vacuum fitting (identical to VCR®)
| Type/Connection | Seals in FKM |
| G1/4″ / 1/4″ VCR | Part-N° 328-1190 |
| G1/2″ / 1/2″ VCR | Part-N° 328-1191 |
VCO® & VCR® are registered Trademarks of Swagelok
Vacuum fitting flange-mounted (identical to VCR®)
| Type/Connection | Seals in FKM | Seals in EPDM |
| G1/4″ / 1/4″ VCR | Part-N° 328-1192 | Part-N° 328-1193 |
Male stud fittings Legris / Brass
| Type/Connection | Seals in NBR |
| G1/4″ to 6mm | Part-N° 328-1211 |
| G1/4″ to 8mm | Part-N° 328-1212 |
| G1/4″ to 10mm | Part-N° 328-1213 |
| G1/2″ to 8mm | Part-N° 328-1216 |
| G1/2″ to 12mm | Part-N° 328-1214 |
| G1/2″ to 14mm | Part-N° 328-1215 |
